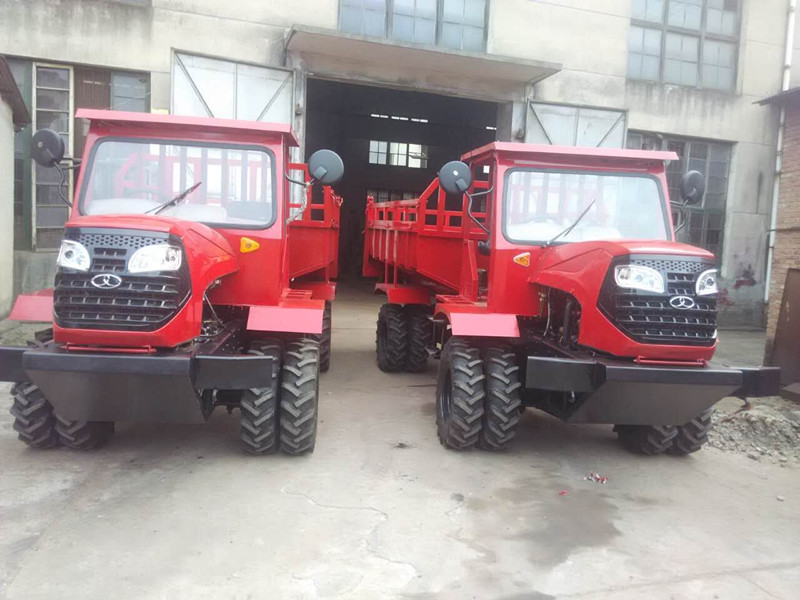

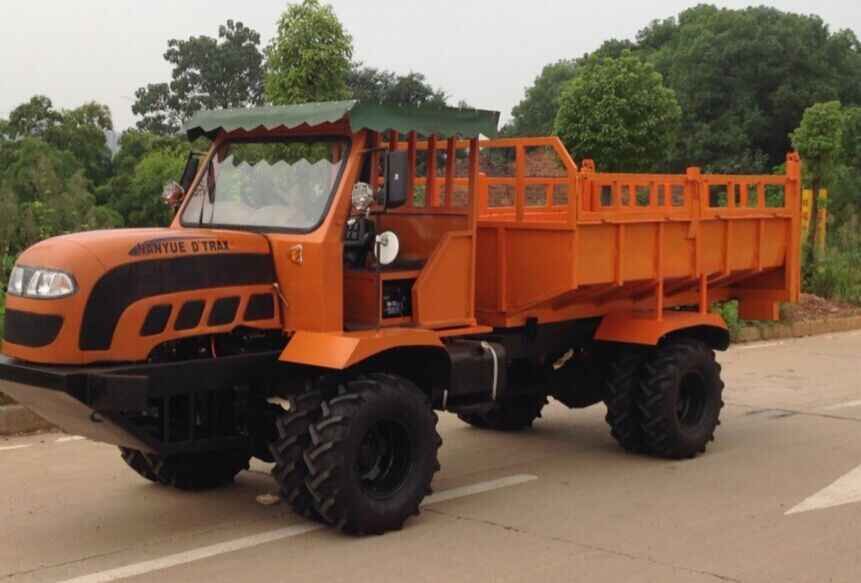

HR854 Trailer tractor
HR854 Trailer tractor
HR854 Trailer tractor
The 4WD palm tractors are main for palm oil platation ,they are specially design for the palm oil plant , main for kinds of transport , especially in the paddy mud land.
1.4wd Oil palm fruit tractor
2.suit for mud land and mountain land transport
3.suit for wood ,banboo ,oil palm ,ore transport
Our the 85HP- 4WD OILD PALM TRACTOR are main for kinds of transport , especially in the mud land for the oil palm,wood ,banboo, ore and so on.
The 4x4wd let the tractor suit for kinds of transport work.The power can from 18-85hp .
| Model | HR854(87HP) 4*4 4 Cylinder | |
| Passager | 2 | |
| Total Mass | 3200KG | |
| Payload | 5T | |
Tractor Dimensions | Overall Length | 5900mm |
| Overall Width | 2000mm | |
| Overall Height | 2200mm | |
Bucket Dimensions | Length | 3000mm |
| Width | 2000mm | |
| Height | 600mm | |
| Wheelbase | 3000mm | |
| Tread | 2000mm | |
| Axle | Type | 1050 |
| Engine | Model | 4100QB-2 |
| Type | Direct Injection | |
| Cylinder(Bore*Stroke) | 110mm/117mm | |
| Displacement | 3612 CC | |
| Horse Power | 87hp/3200 r/min | |
| Starter System | Electric /24 v | |
| Fuel | Diesel Fuel | |
| Fuel Tank capacity | 70 L | |
| Steering System | Type | Fully hydraulic articulated steering |
| Electrical | Battery Type | LT120 * 2 |
| Battery Capacity | 24 v | |
| Working Lamp | 24 v | |
| Performance & Operating Range | Maximum Speed | 60 km/h |
| Minimum Turning Radius | 4500 mm | |
| Maximum Gradability | 30° | |
| Minimum Ground Clearance | 200mm | |
| Maximum Braking Distance | 6000mm（60km/h，No Load，Flat Surface）） | |
| Transmission | Gear Box | 145 High & Low 8 Forward +2 Reverse with High/Low Gear |
| Transfer Case | 330 | |
| Brake | Type | Air Brake |
| Hand Brake | Machanical Actuated | |
| Tyre | Front | 9. 5* 16（double tyres） |
| Rear | 9. 5* 16（double tyres） | |
| Hydraulic System | Pump Type | Gear Pump |
| Max Discharge(qt/min) | 16 mpa | |
| Clutch | Type | Oil and Gas Booster |
| Unloading | Type | Hydraulic gear pump dump bucket, the maximum angle of 40 degrees |
