Model 55HP
Model 55HP
Model 550 AND554
Product features:
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.

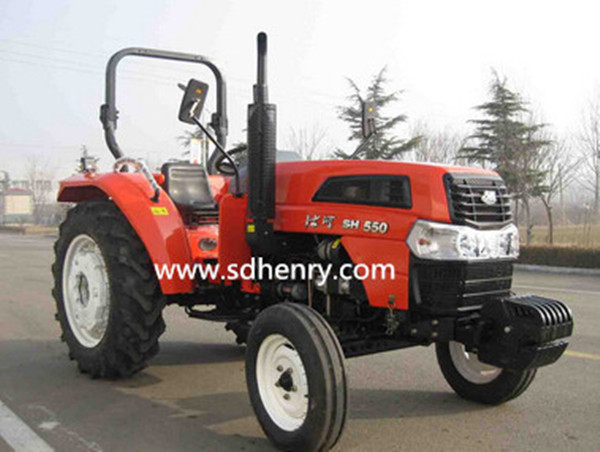

Model photo:
Specification:
MODEL | 550/554 | |
Engine Power kw/hp | 40.4/55 | |
Engine Type (cyl, T/NA) | 4 ,NA | |
Rated Speed (rpm) | 2400 | |
Engine Torque (Nm @ engine rpm) | 240~245;≤1650 | |
Specific Fuel Consumption (L/h) | ≤12.3 | |
Emission Regulation availability (Euro I,II,II) | stageⅡ | |
Cooling type | WC | |
Engine manufacturer | Quan Chai | |
Engine Displacement(L) | 4.087 | |
Air filter type | Oil Bath | |
Fuel tank capacity (litres) | 50 | |
Exhaust pipe (Vertical/Horizontal) | Vertical | |
Cyclone pre-filte (YES/NO) | NO | |
Alternator (V/w) | 14v/350 | |
Engine starte (kw) | 3.7 | |
TRANSMISSION | ||
Type of clutch | Single, Dry | |
Total gears | 12F+ 12R | |
Synchronized Gearbox (YES/NO) | NO | |
Min-Max speed (km/h) | 2.24-29.91F/1.97-26.22R | |
Differential lock (limited slip/100% lock) | 100% lock | |
4WD engagement type | Mechanical | |
Max Drawbar Pull 2WD/4WD | 13.5/18 | |
Type of rear final drive (PLanetary, cascade), | Planetary/3 | |
Pto speeds PT(rpm) | 540/760 | |
PTO speed @ engine speed | 540/760,2400 | |
PTO engagement | 8XΦ38/6XΦ35/21XΦ35 | |
PTO independent clutch (YES/NO) | NO | |
PTO power (kw/hp) | 34.4/46.8 | |
Outlets pump type | gear pump | |
Max pump delyvery @ engine rpm | 16/2000rpm | |
