Model 80HP
Model 80HP
Model 800 AND 804
Product features:
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.

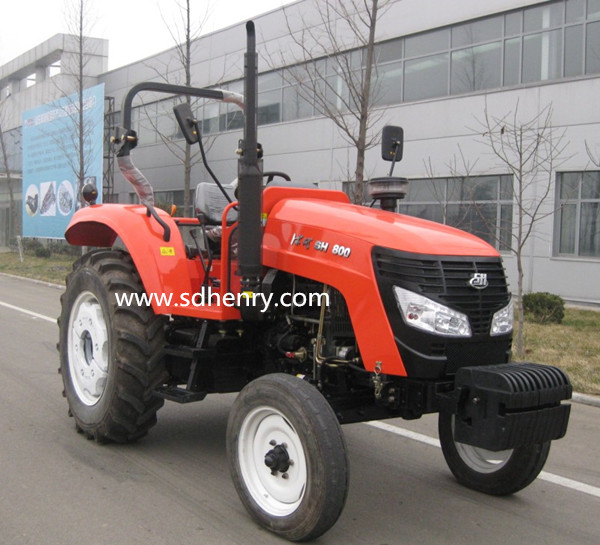

Model photo:
Specification:
Model | 800/804 |
Engine | |
Engine Power KW/HP | 59 / 80 |
Engine Type (Cyl, T/NA) | 4 ,Turbo charger /Natural Aspirated |
Rated Speed (rpm) | 2300 |
Engine Torque (Nm @ engine rpm) | 306,1600~1800 |
Specific Fuel Consumption (L/h) | ≤17 |
Emission Regulation availability (Euro I,II,II) | stageⅡ |
Cooling type | WC |
Engine Displacement(L) | 4.95 |
Air filter type | Oil Bath |
Fuel tank capacity (litres) | 126 |
Exhaust pipe (Vertical/Horizontal) | Vertical |
Engine starter (kw) | 3.7 |
Alternator (V/w) | 4/900 |
TRANSMISSION | |
Type of clutch | Single, Dry |
Total gears | 16 F + 8 R |
Synchronized Gearbox (YES/NO) | NO |
Min-Max speed | 0.463--34.873F / 0.622-10.789 R |
Differential lock (limited slip/100% lock) | 100% lock |
Max Drawbar Pull 2WD/4WD (KN) | 23.25/27.9 |
Type of rear final drive (PLanetary, cascade), | Planetary,4 |
PTO | |
Pto speeds PT(rpm) | 760 / 1000 |
PTO speed @ engine speed | 760 / 1000@2300 |
PTO engagement | 8XΦ38/6XΦ35/21XΦ35 |
PTO independent clutch (YES/NO) | YES |
PTO shaft splines | 8 |
HYDRAULIC SYSTEM | |
Outlets pump type | gear pump |
Max pressure (bar) | 20/ 2000 |
Max pump delyvery @ engine rpm(ml/r),(rpm) | 2 |
Outlets valves function (Kick-out, Detent, Float) | Float |
TECHNICAL DATA | |
Overall size 2WD (LxWxH) / mm | 4290x2100x2810 |
Overall size 4WD (LxWxH) / mm | 4290x2100x2810 |
Max height with ROPS | 2790 |
Max height with CABIN / mm | 2860 |
Rear Wheel track 2WD / mm | 1510 |
Front Wheel track 2WD / mm | 1610 |
Front Wheel track 4WD / mm | 1610 |
Rear Wheel track 4WD / mm | 1620 |
