Model 750 AND 754
Product features:
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.

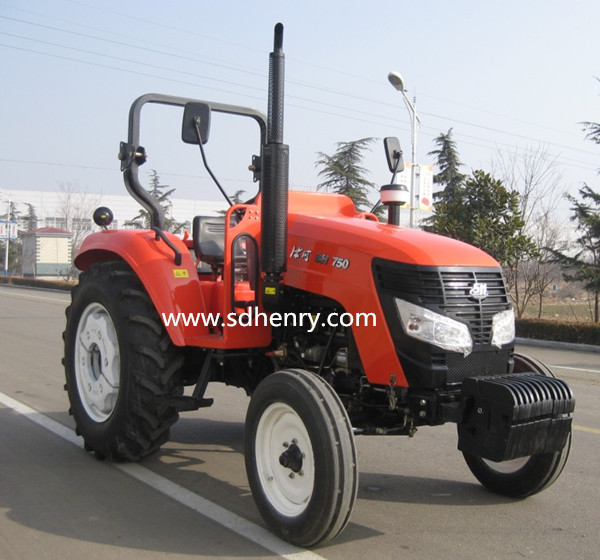

Model photo:
Specification:
Model | 750 | 754 | ||
Type | / | 4×2 | 4×4 | |
dimension(L*W*H) | mm | 4052×1900×2650 | 4052×1900×2650 | |
Wheel base(F/R) | mm | 1350/1525 | 1450/1525 | |
Wheel base(F/R)adjust | / | step adjustment / step adjustment | Non-adjustment/step adjustment | |
Minimum groundclearance | mm | 440 | 340 | |
Minimum using weight | kg | 2740 | 3010 | |
Counterweight(Max) | kg | Front 270/Rear 480 | Front 270/Rear 480 | |
Gear shift(Forward/Reverse/Climb) | / | 8/2 | 8/2 | |
Max traction | kN | 13.75 | 15.0 | |
Engine | Model | / | LR4B5-T90 | LR4B5-T90 |
Inspiratory way | / | Natural | Natural | |
Cylinder no | pcs | 4 | 4 | |
Cylinder bore*stroke | mm | 108×135 | 108×135 | |
Rated power | kW | 55 | 55 | |
Rated turning | r/min. | 2200 | 2200 | |
Steering | / | Hydraulic | Hydraulic | |
Brake | / | Mechnical operate | Mechnical operate | |
Clutch | / | Dry type, | Dry type, | |
Minimum turning radius | m | 4.6±0.2 | 4.9±0.3 | |
Tyre (F/R) | / | 6.5-20/14.9-30 | 8.3-24/14.9-30 | |
Tyre pressure(F/R) | kPa | 200-250/118-137 | 118-137/118-137 | |
Suspension | / | Rear 3 point | Rear 3 point | |
Suspension type | / | 2 | 2 | |
Frame Maximum lifting force | kN | 12.405 | 12.405 | |
Adjustment method | / | Force bit control and Floating control | Force bit control and Floating control | |
Hydraulic output | / | Without | Without | |
PTO shaft | / | Semi-independent | Semi-independent | |
PTO shaft turning speed | r/min | 1000(Optional 760) | 1000(Optional 760) | |
PTO shaft power | kW | 46.8 | 46.8 | |
