Model 110HP
Model 110HP
Model 1104
Product features:
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.

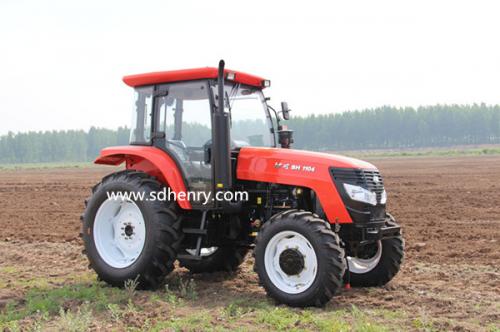

Model photo:
Specification:
Model No. | 1104 | |
Driver type | 4X4WD FOUR WHEEL DRIVE | |
ENGINE | ||
Engine Model | LR6B3-23 | |
Max.Torque(N.m)/RPM | More than 425/1500-1700 | |
Displacement | 6.87 | |
Fuel Tank capacity | 126 | |
Rating power of engine | 81 | |
Fuel consumption @ nominal power | Less than or equal to 242g/kw.h | |
Air intake type | Naturally aspirated | |
No. of cylinder | 6 | |
Air filter | TY295 Oil bath | |
Torque Reserve | 25% | |
Transmission system | ||
Clutch | One-piece dry, double-action | |
(F+R)No.of gears | 16F+8R | |
Shift method | Sliding sleeve | |
Max.speed | 34.87km/h | |
Gearshift lever position | Side position | |
Hydraulic system | ||
Hydraulic output flow rate | ||
Hydraulic output valve | 42.83L/MIN | |
Working device | Two groups | |
Three-point-linkage | 2 TYPE | |
PTO Speed | 540/10000R/MIN | |
Lifting capacity | More than or Equal to 20KN | |
Tillage depth adjustment | Position and float | |
Whole tractor Parameter | ||
Whole machine dimensions (mm) | 4290x2100x2810 | |
Min operation mass | With Cab | 4074 |
Without Cab | 3896 | |
Wheel base (mm) | 2195 | |
Minimum ground clearance(mm) | 379 | |
Warm wind cab | Optional | |
Front/rear wheel tread | 1610/1620,1720,1820,1920,2020 Common 1620 | |
Tire size | 11.2-24/16.9-34 | |
Braking and steering | ||
Braking system | Hydrostatic pedal control ,disk brake | |
Steering type | Hydraulic steering | |
Steering angle of 4x4wd | 45 Degree | |
Optional | 1. ROPS 2. SUNSHADE 3. SWING DRAWBAR 4. FRONT/REAR BALLAST | |
