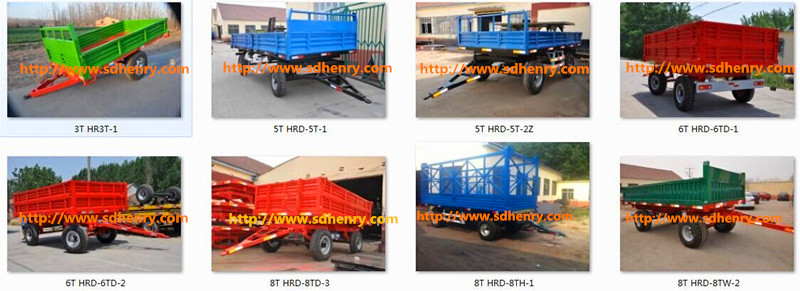

Double-Axle Farm Trailer
Double-Axle Farm Trailer
Double-Axle Farm Trailer
Specification
型号Model | 单位unit | 7CX-3 | 7CX-4 | 7CX-5 | 7CX-6 | 7CX-7 | 7CX-8 | 7CX-9 | 7CX-10 |
额定载重 Loading weight | kg | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
车厢尺寸 Box size | cm | 340*180*50 | 340*190*50 | 3600*190*50 | 380*200*50 | 400*200*50 | 430*200*50 | 470*200*50 | 520*200*50 |
轮胎型号/数量 Tyre /Q’ty | 7.50-16/4 | 7.50-16/4 | 8.25-16/4 | 8.25-16/4 | 9.00-20/4 | 9.00-20/4 | 9.00-20/4 | 9.00-20/4 | |
整机重量 Total weight | kg | 1270 | 1350 | 1750 | 1870 | 1980 | 2200 | 2500 | 3100 |
制动形式Brake | 充气制动 air pneumatic brake | ||||||||
配套动力 Matched power | hp | 30 | 40 | 50 | 60 | 70 | 80 | 80-100 | 90-120 |
挂接方式Linkage | 牵引Trailed | ||||||||
选装配置 The items selectable | 单作用油缸自卸,油管接头1/2”锥螺纹,气体接头M20*1.5 Tipping single action oil cylinder,oil connection in 1/2” thread,gas connection M20*1.5 | ||||||||
